Type A - e-Tax Control Unit

In this article

e-Tax Control Unit

LS Central and the e-Tax Control Unit

LS Central supports e-Tax Control Unit and has been tested with the following provider: West International.

Send an email to sales@westpay.se or contact phone number: +46 8 50668480 to register with West International.

You have to register each POS at the Swedish Tax authorities, Skatteverket.

The Tax Authorities will provide unique stickers, one sticker for each unit, that must be put on the unit. The stickers contain a serial number that is registered to the retailer.

  • The e-Tax Control Units are USB sticks; this is the physical memory for the POS.
  • One e-Tax Control Unit is required for each POS in the store.
  • Each POS connected to an e-Tax Control Unit has a sticker with its unique serial number.

The e-Tax Control Unit will save all needed information about each POS sale. The tax authorities can inspect the e-Tax Control Unit whenever they want.

Disclaimers:

  • Only the Tax Authorities, Skatteverket, can access the information on the Control Unit.
  • All POSs with type A fiscal devices must register with the tax authorities in Sweden (Skatteverket).

e-Tax Control Unit

Each e-Tax Control Unit has a sticker containing the serial number, which is registered in LS Central BackOffice for the terminal it is connected to. The sticker must stay on the e-Tax Control Unit and not be removed.

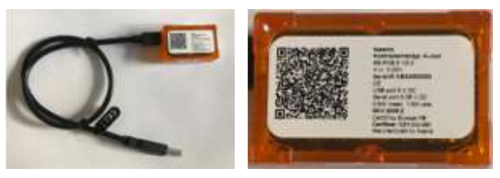

Example of an e-Tax Control Unit:

LS Central and the e-Tax Control Unit

After the registration is completed, the tax authorities send the unique stickers for the e-Tax Control Unit, one per POS.

The e-Tax Control Unit is prepared for each POS terminal and must always remain in the POS unit. If the unit is removed or is not working, the POS cannot finish its transaction or continue to sell.

The e-Tax control unit is connected to the POS terminal via USB.

Note: A green light will flash on the device when the installation is done correctly. See more information about the POS terminal settings on the Fiscal Page for Type A: e-Tax with the Control Unit.
