GST Tax Type Setup

In this article

Tax entities

Tax attributes

Tax rates

Use case

Use case tree

To set up the GST Tax Type in LS Central IN:

1. Click the icon, enter Tax Types, and select the relevant link.
2. Locate the GST code, and then select the related link.



Tax entities

GST calculation at LS Retail POS involves a new set of tables to which the tax entities should be added.

• Add a new Table named LSC POS Transaction with the Entity Type set to Transaction.
• Add another Table named LSC POS Trans. Line with the Entity Type set to Transaction.

  This lets you configure use cases based on these new tax entities.

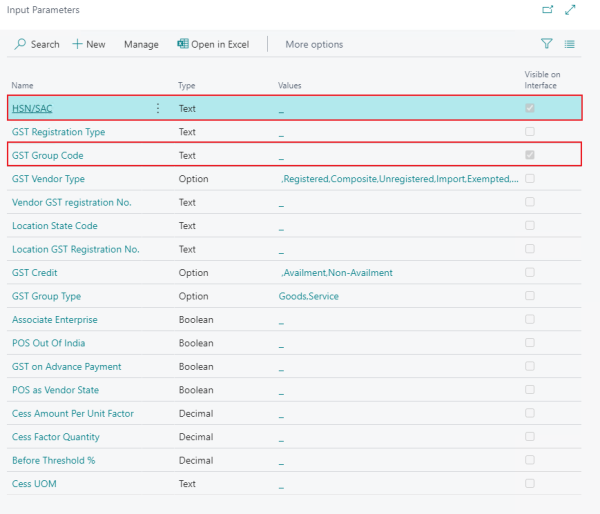

Tax attributes

A tax attribute is used as a parameter for tax rate configuration.

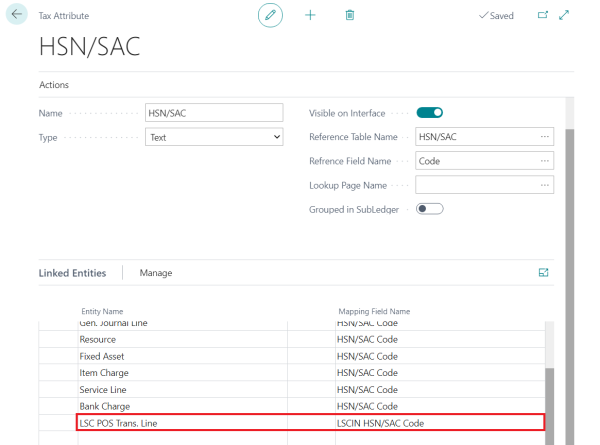

• Link the LSC POS Trans. Line entity to the LSCIN HSN/SAC mapping field.

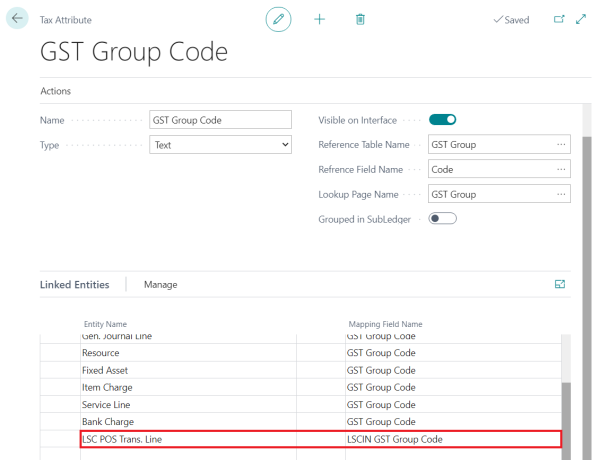

• Link the LSC POS Trans. Line entity to the LSCIN GST Group Code mapping field.

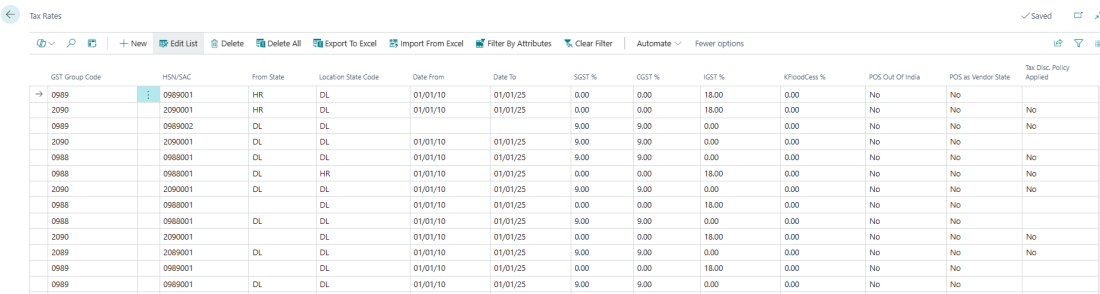

Tax rates

• Select a tax rate value based on the column name as configured in the rate setup.

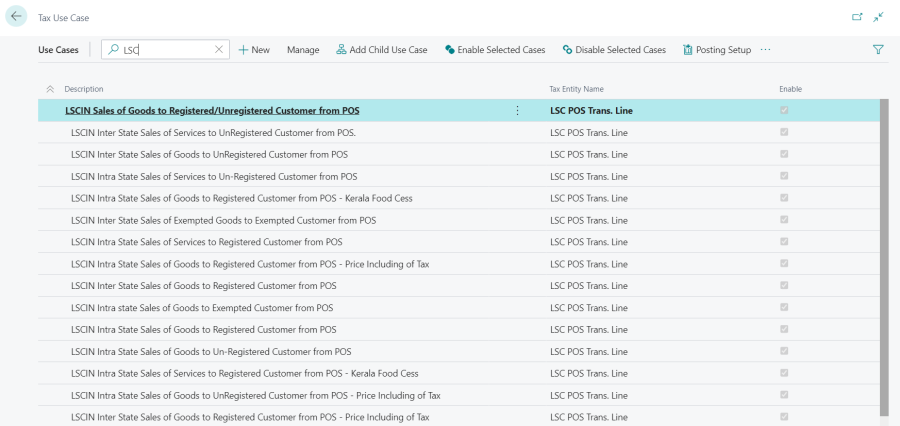

Use case

A use case describes a business scenario, conditions, and events that trigger tax calculation. The use case can be enabled or disabled based on the business's need.

• Import the use case JSON file LSCIN GST TaxUseCase.json from the IN localization folder in the LS Central release package.
• After importing, GST tax is calculated in the POS transaction line.





Use case tree

A use case tree makes a use case applicable.

• Search for Use Case Tree, and select the relevant link.
• Select Import Nodes to import the use case tree JSON file LSCIN GST UseCaseTree.json from the IN localization folder in the LS Central release package.
• After importing, GST tax is calculated for POS sales as defined in the use case.
